Digital Signage

Empower your business with scalable digital signage. Our comprehensive range includes wall-mounted displays, floor-standing kiosks, video walls, space-optimizing LCD bar displays, and cutting-edge transparent dual signage, ensuring maximum impact for any environment.

Focus On Your Goals

Concentrate on expanding your market share. We provide tailored OEM/ODM manufacturing and strict quality control, bringing your product vision to life.

Maintain Momentum

Accelerate your time-to-market. Rely on our scalable production capacity and streamlined supply chain to keep your product rollouts consistently on schedule.

Explore the Smart Series

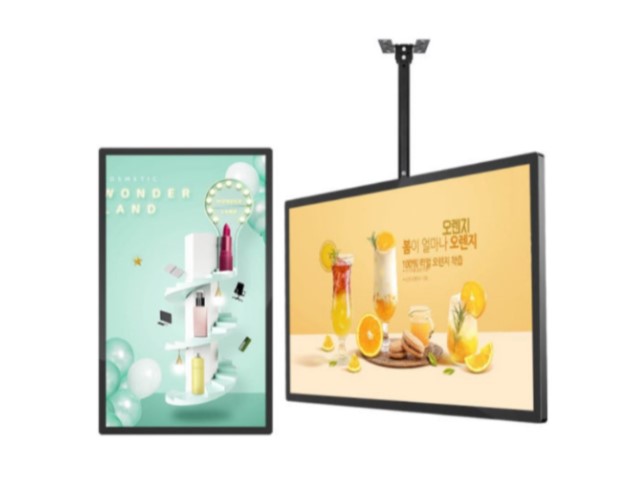

Wall-Mounted Display

Ideal For: Enterprise networks, large-scale retail environments, healthcare facilities, and educational campuses.

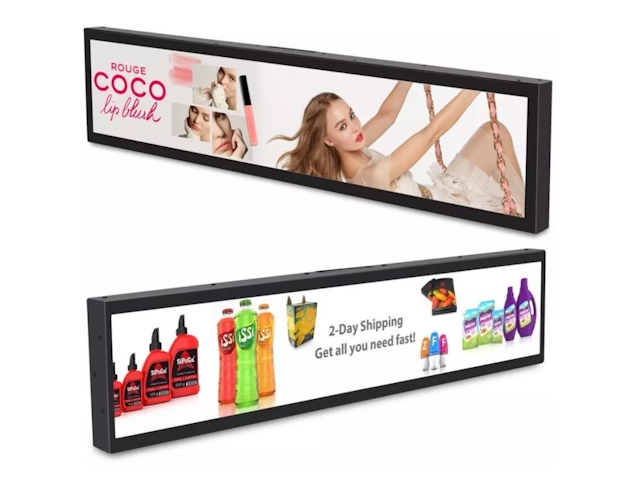

LCD Bar Display

Ideal For: Smart retail shelving systems, public transportation networks, commercial elevators, and specialized signage projects.

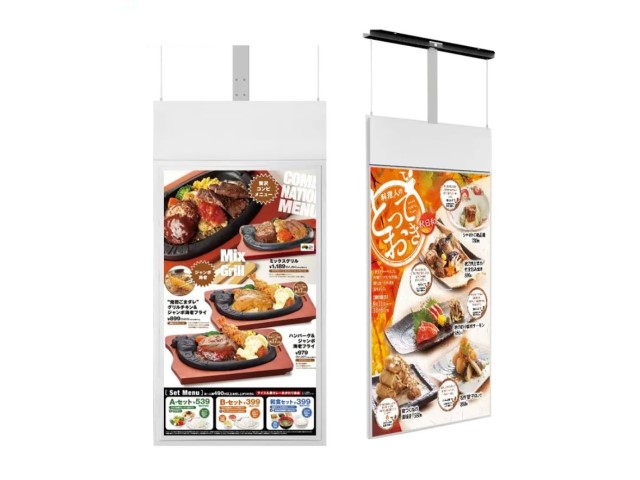

Transparent Dual Signage

Ideal For: High-end retail showrooms, premium corporate partitions, interactive museum exhibits, and advanced transit hubs.

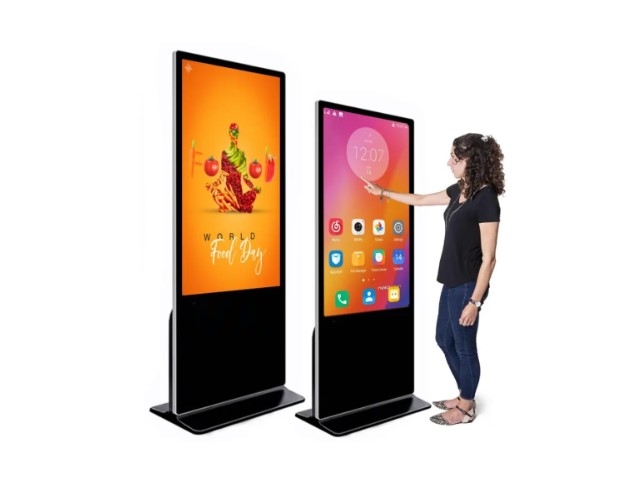

Floor-standing Kiosk

Ideal For: Interactive public directories, automated hospitality systems, commercial retail centers, and smart campus networks.

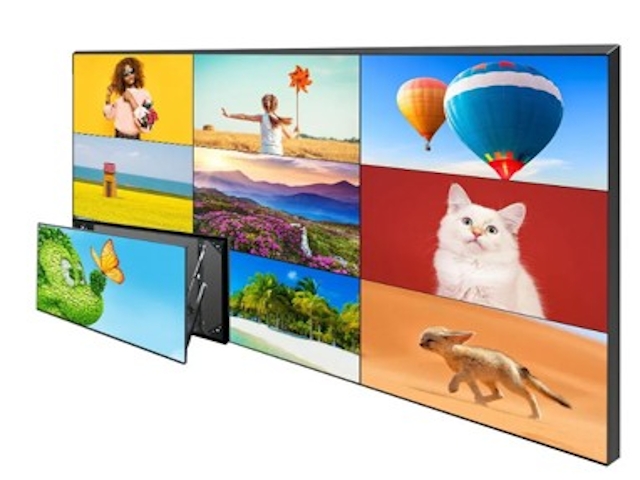

Video Wall

Ideal For: Command control centers, immersive retail flagships, large entertainment venues, and major transit hubs.

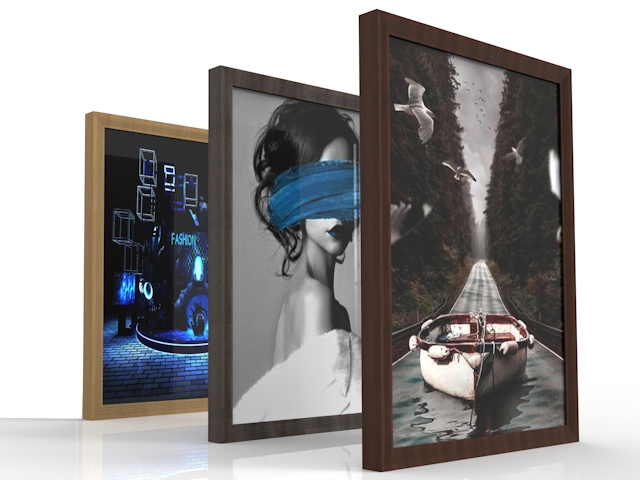

Digital Art Frame

Ideal For: Premium hospitality suites, corporate executive lounges, digital museum galleries, and high-end retail boutiques.

Key Features & Capabilities

Full Scenario Coverage: A one-stop solution ranging from shelf edge displays to large-scale video walls.
Industrial Reliability: Built for 24/7 continuous operation with a lifespan exceeding 50,000 hours.
UHD Visual Performance: Supports 4K/UHD resolution with high brightness, ensuring clarity even in bright ambient light.
Smart Cloud Control: Compatible with mainstream CMS for remote content management and instant distribution.
Sleek Aesthetic Design: Features ultra-narrow bezels and slim profiles to blend seamlessly into premium spaces.
Interactive Experience: Optional high-sensitivity touch (CTP/IR) for enhanced user engagement and self-service.
Versatile Installation: Supports landscape, portrait, ceiling-mount, and recessed installation options.

Technical Specifications

Screen Size Rangeadmin2026-06-24T10:18:10+08:00

Screen Size Range

Wall-Mounted Display: 19″ /24″ /32″ / 43″ / 50″ / 55″ / 65″ / 75″ / 86″ / 98″
LCD Bar Display: 19″ / 24″ / 28″ / 37″ / 48″ (Custom sizes available)
Transparent Dual Signage: 30″ / 43″ / 55″
Floor-Standing Kiosk: 43″ / 49″ / 55″ / 65″/ 75″/ 85″
Video Wall Unit: 46″ / 49″ / 55″
Digital Art Frame: 21.5″ / 32″ / 43″ / 55″

Display Performanceadmin2026-06-05T17:01:23+08:00

Display Performance

Resolution: 3840 x 2160 (4K) for standard screens; Custom resolution for bar displays.
Brightness (Typ.): Standard Indoor: 350 – 500 nits
Window/Semi-outdoor: 700 – 2500 nits (Sunlight Readable)
Viewing Angle: 178°(H) / 178°(V) (IPS Panel)
Contrast Ratio: 1200:1 to 4000:1 (Dynamic contrast up to 500,000:1)
Life Span: ≥ 50,000 Hours

Touch Technology (Optional)admin2026-06-24T10:28:11+08:00

Touch Technology (Optional)

Type: Capacitive (CTP) or Infrared (IR)
Touch Points: 10-point / 20-point Multi-touch
Surface Glass: 3mm/4mm Tempered Glass (Mohs Level 7) with Anti-Glare (AG) coating

Hardware & OSadmin2026-06-24T10:29:44+08:00

Hardware & OS

Operating System: Android 11/12 or Windows 10/11
CPU (Android): Quad-core / Octa-core Processor (e.g., RK3568 / RK3588)
RAM/ROM:
RAM: 2GB/4GB (Optional)
ROM: 8GB/16GB/32GB/64GB (Optional)
Connectivity: Dual-band Wi-Fi (2.4G/5G), Gigabit Ethernet (RJ45), Optional 4G/5G Module

I/O Interfacesadmin2026-06-24T10:30:19+08:00

I/O Interfaces

Video Input: HDMI, DP, VGA
Video Output: HDMI Out (Supports Daisy Chain)
Data: USB 3.0 , USB 2.0, Type-C (Select models only)
Network & Control: RJ45 LAN (Gigabit), RS232 (DB9 Serial Control)
Audio: 3.5mm Audio In/Out, S/PDIF
Expansion: TF/SD Card Slot (Storage), SIM Card Slot (4G/5G)

Video Wall & Designadmin2026-06-24T10:30:55+08:00

Video Wall & Design

Bezel Width (Video Wall): 0.88mm / 1.7mm / 3.5mm (Bezel-to-Bezel)
Enclosure Material: Aluminum Alloy Frame + Cold Rolled Steel Back
Color: Black / Silver / White (Customizable)

Scalable Manufacturing

From Pilot to Volume

Joint Engineering

Design & Optimization

Strict Quality Assurance

End-to-End Control

Rapid Response

Support On Demand
